Arduprofe Control Car V3

8.8 13

v1.2 by DINASTIA TECNOLOGICA

Arduprofe Control Car V3 APK download Arduprofe Control Car V3 APK download

About Arduino_Control_Car_V2

Arduino_Control_Car_V2 (Package Name: appinventor.ai_el_profe_garcia.Arduino_Control_Car_V2) is developed by DINASTIA TECNOLOGICA and the latest version of Arduprofe Control Car V3 1.2 was updated on February 14, 2018. Arduprofe Control Car V3 is in the category of Education. You can check all apps from the developer of Arduprofe Control Car V3 and find 11 alternative apps to Arduprofe Control Car V3 on Android. Currently this app is for free. This app can be downloaded on Android 2.1+ on APKFab or Google Play. All APK/XAPK files on APKFab.com are original and 100% safe with fast download.

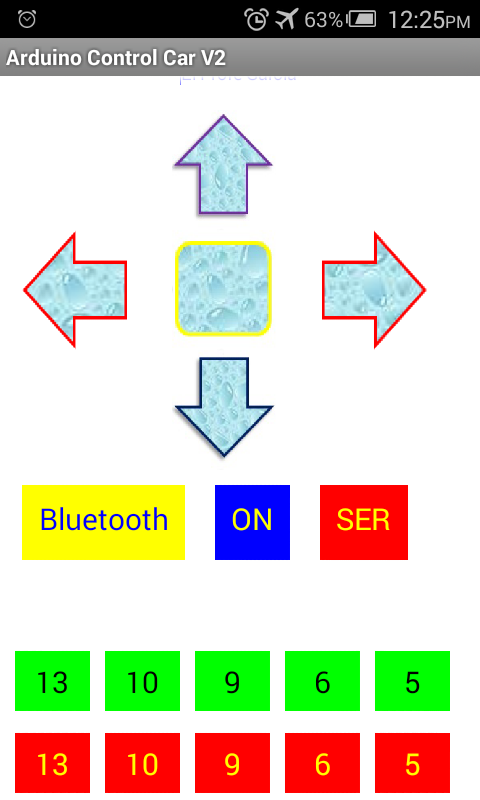

Control via Bluetooth de su carro Arduino (El Profe Garcia)
Descarga programa para el Arduino en: https://create.arduino.cc/editor/ProfeGarcia/4b1c1b33-a326-4165-a812-d17e00935c61/preview
/* Arduino Control Car V2 By: El Profe Garcia
ARDUINO L293D(Puente H)
5 10
6 15
9 7
10 2
5V 1, 9, 16
GND 4, 5, 12, 13
El motor 1 se conecta a los pines 3 y 6 del Puente H
El motor 2 se conecta a los pines 11 y 14 del Puente H
La fuente de alimentacion de los Motores se conecta a tierra y
el positivo al pin 8 del puennte H.
Conexion del Modulo Bluetooth HC-06 y el Arduino
ARDUINO Bluetooth HC-06
0 (RX) TX
1 (TX) RX
5V VCC
GND GND
!!Cuidado!! Las conexiones de TX y RX al modulo Bluetooth deben estar desconectadas
en el momento que se realiza la carga del codigo (Sketch) al Arduino.
Conexion Sensor Ultrasonido HC-SR04
ARDUINO Ultrasonido HC-SR04
2 Echo
3 Trig
5V VCC
GND Gnd
Conexion Servo SG90
ARDUINO Ultrasonido HC-SR04
11 Signal
5V VCC
GND Gnd
*/

Arduino_Control_Car_V2 1.2 Update

Se Actualizo para control de potencia con la Shield Ardu7 del Profe Garcia
Read More
Arduino_Control_Car_V2 Features
Related Videos
Previous Versions More
Arduprofe Control Car V3
Arduprofe Control Car V3 1.2 APK
February 27, 2018 2.74 MB

Requires Android: Android 2.1+

Screen DPI: 160-640dpi

SHA1: 072235a9c090ce05187c5aefc731dd15e0482bcb

Size: 2.74 MB

What's New:

Se Actualizo para control de potencia con la Shield Ardu7 del Profe Garcia
More Information

Update Date:

Latest Version:

1.2

Need Update:

Submit latest version

Requirements:

Android 2.1+
