ScorchCAD is a clone of OpenSCAD written for Android devices. ScorchCAD enables users to build CAD (computer aided design) models on an android phone or tablet.

About ScorchCAD

ScorchCAD (Package Name: com.scorchworks.scorchcad) is developed by Scorch Works and the latest version of ScorchCAD 2016.11.18 was updated on November 18, 2016. ScorchCAD is in the category of Tools with the feature 3D modelling. You can check all apps from the developer of ScorchCAD and find 200 alternative apps to ScorchCAD on Android. Currently this app is for free. This app can be downloaded on Android 2.3.2+ on APKFab or Google Play. All APK/XAPK files on APKFab.com are original and 100% safe with fast download.

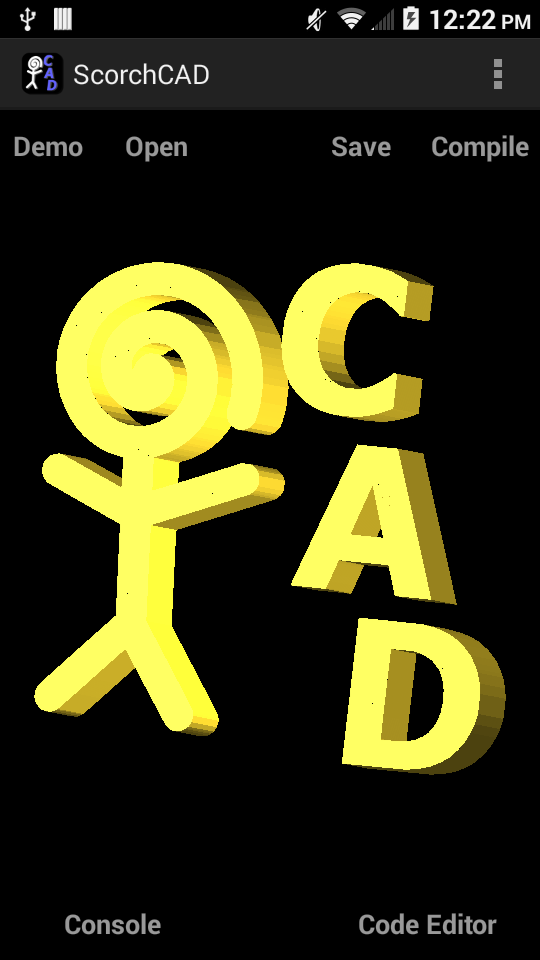

ScorchCAD is a clone of OpenSCAD written for Android devices. ScorchCAD enables users to build CAD (computer aided design) models on an android phone or tablet. 3D modeling is performed in ScorchCAD by entering OpenSCAD code on the editor screen then compiling the code on the ScorchCAD viewer screen. The resulting 3D model can be viewed on the viewer screen. Rotate the model with one finger, 2 finger pinch to zoom, pan using three fingers. ScorchCAD can also be used as a minimal STL (STereoLithography) file viewer.
ScorchCAD aims to provide the same functions as OpenSCAD but it does not use the same source code. Most of the basic features are currently working. Additional features will be supported in future updates.
Features currently supported (fully or partially):
- 3D Shapes: cube, cylinder, sphere, polyhedron
- 2D Shapes: square, circle, polygon
- Transformations: translate, rotate, scale, resize, mirror, multmatrix, hull, color
- Boolean Operations: union, difference and intersection
- Functions: norm, cross, lookup, str, , version, version_num and mathematical functions
- Other: echo, for, intersection_for, if, assign, projection, surface
- File Import: DXF and STL (ASCII and binary)
- User defined variables and special variables : $fa, $fs and $fn
- User defined functions and Math functions
- Modifier character * (disable)
ScorchCAD is still a work in progress here is a partial list of the OpenSCAD features not yet supported:
minkowski, search, children, parent_module, Modifier Characters (! show only, # highlight, % transparent)
** Help make ScorchCAD better ***
If ScorchCAD crashes during a model build please e-mail the *.scad file that resulted in a crash. I get crash reports from Google Play but it is difficult to troubleshoot without the code that caused the crash.

ScorchCAD 2016.11.18 Update

Made changes to prevent application crashing.
Read More
ScorchCAD Features
Previous Versions More
ScorchCAD
ScorchCAD 2016.11.18 APK
November 19, 2016 179.77 KB

Requires Android: Android 2.3.2+

Screen DPI: 160-480dpi

SHA1: 8506e1112adb4b2c947b1bc3a20ef41c2d1cccce

Size: 179.77 KB

What's New:

Made changes to prevent application crashing.
ScorchCAD
ScorchCAD 2016.08.27 APK
August 28, 2016 179.91 KB

Requires Android: Android 2.3.2+

Screen DPI: 160-480dpi

SHA1: 97187035a5b5ff74ea09ebf7ef68bfb286dde06a

Size: 179.91 KB

What's New:

- Fixed problem with IF - ELSE IF - ELSE constructs
- Improved handling of undefined variables
ScorchCAD
ScorchCAD 2016.05.04 APK
May 4, 2016 179.58 KB

Requires Android: Android 2.3.2+

Screen DPI: 160-480dpi

SHA1: a398ab27989c3facb1d9c7de85cfb9aa7d2e2e7f

Size: 179.58 KB

What's New:

- Changed default setting to auto complete disabled because auto complete results in crashes on some devices. Auto complete can be turned back on in the Editor menu.
- Added dialog boxes warning before code editor is erased when clear code editor is selected.
- Added option to create a link to an external file. When a file is linked an external editor can be used to modify the external file between model builds.
ScorchCAD
ScorchCAD 2016.05.01 APK
May 2, 2016 178.96 KB

Requires Android: Android 2.3.2+

Screen DPI: 160-480dpi

SHA1: 01a984f41fd9ef97a019def1f3e1093c67e90907

Size: 178.96 KB

What's New:

- Added menu in editor to allow turning off auto-complete (auto-complete causes problems for some people)
- Fixed "scale"option for "linear_extrude" function
- Cleaned up main drop-down menu
