ScanM5X Data Logger
8.9 20
V 2.43 by scantwin
About ScanM5X 2.43
ScanM5X 2.43 (Package Name: scantwin.scanmM5.AllinOne) is developed by scantwin and the latest version of ScanM5X Data Logger V 2.43 was updated on July 10, 2025. ScanM5X Data Logger is in the category of Tools. You can check all apps from the developer of ScanM5X Data Logger and find 104 alternative apps to ScanM5X Data Logger on Android. Currently this app is for free. This app can be downloaded on Android 4.0.3+ on APKFab or Google Play. All APK/XAPK files on APKFab.com are original and 100% safe with fast download.
Version 2.42 is in principle compatible with Android 13.
ScanM5X is a tool OBD for the ECU Marelli M59, M5A of Italian, Ducati, Guzzi motorcycles after 2001. It need an ELM327 Bluetooth or Wifi interface and connection kit to Tyco 3pins and need a motorcycle 12V power.
Reminder: the contact will be ON, less than 10sec before launching the app.
ScanM5X stores No. Id of each ELM-BT/Wifi already connected once and automatically connects

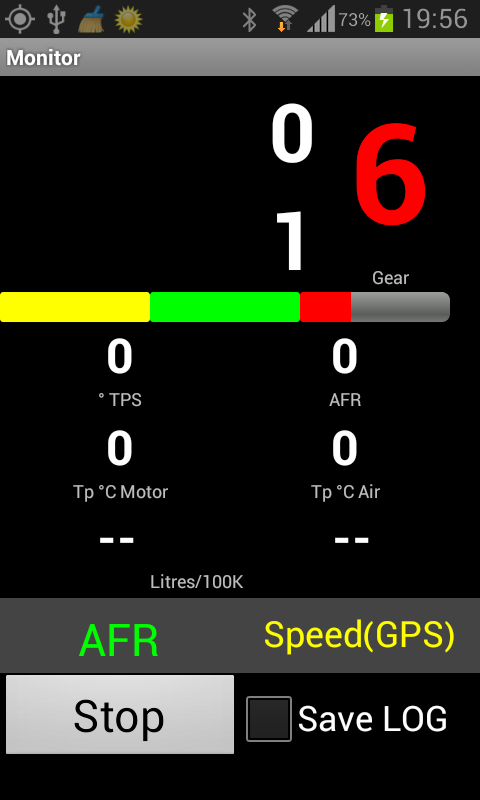

ScanM5X displays the values of the sensors in real time.
- displays sensors

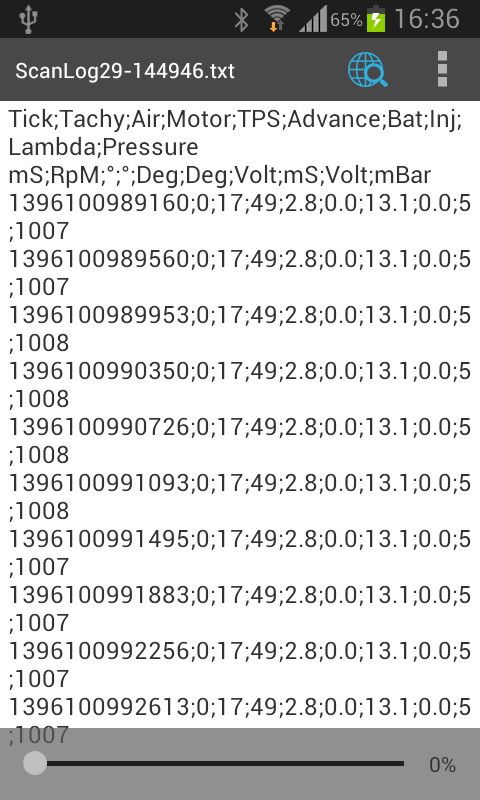

- logs data in file

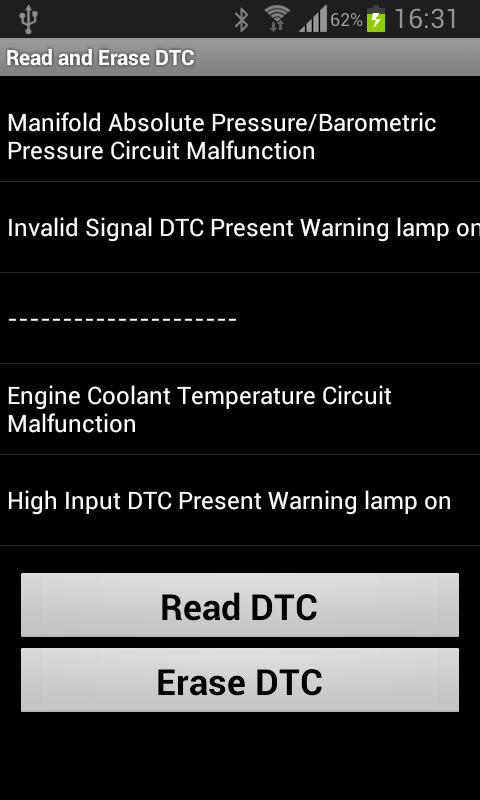

- displays and erase DTC

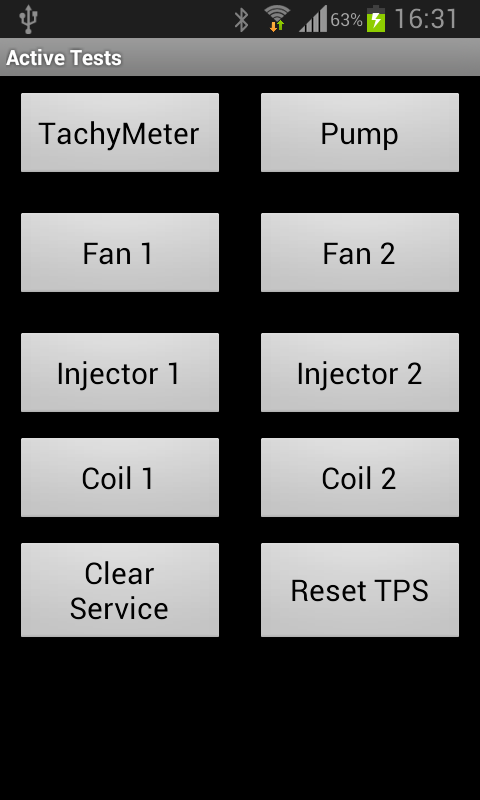

- runs standard Active Tests
- Reset Service lamp
- Reset TPS
- Change the trimmer (for ECU without lambda Sensor)

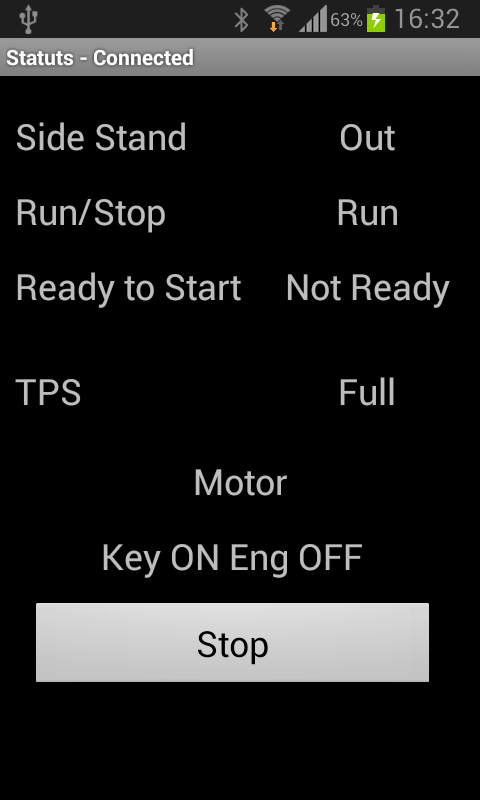

- displays status (side stand, Run/Stop)
ScanM5X is a diagnostic and tuning tool, they should not be used during the trip.
Need:
Fiat 3pin Alfa Lancia to 16 Pin Diagnostic Cable obd2
and
ELM327 OBDII V1.4 Bluetooth Diagnostic Interface OBD2 or ELM327 VGate Bluetooth OBD-II OBD2 or ELM327 Wifi.
Caution : it doesnt work with some ELM like Super Mini V2.1.
Recommended ELM327: BlueScan II from Lonelec.com
Thank you Frank, H@ns and Paul for their help and patience.
Link Bluetooth to Innovate sensors (@TM) conceived and designed by Implusive_Duc, Senior Member of Ducati.ms
- added explicit permissions for write file access to memory (datalog, route, DTC, setting)
- added explicit permissions for GPS location (speed, route)
See my site for some help
http://christian.giupponi.free.fr/Android/SCANM5X.HTM
and
voir http://christian.giupponi.free.fr/Android/SCANM5X_HC06.HTM
REQUIRED AUTHORIZATIONS:
- Fine Location:
* to retrieve speed in Monitor and Dashboard
* this authorization is requested because the BT would allow to connect an external GPS
- Bluetooth:
* connection of ELM-BT and HC06 or ELM-BLE
- Wifi:
* connection of ELM-Wifi
- Network:
* download Help file
- prevent device from sleeping:
* for use while driving
ScanM5X is a tool OBD for the ECU Marelli M59, M5A of Italian, Ducati, Guzzi motorcycles after 2001. It need an ELM327 Bluetooth or Wifi interface and connection kit to Tyco 3pins and need a motorcycle 12V power.
Reminder: the contact will be ON, less than 10sec before launching the app.
ScanM5X stores No. Id of each ELM-BT/Wifi already connected once and automatically connects
ScanM5X displays the values of the sensors in real time.
- displays sensors
- logs data in file
- displays and erase DTC
- runs standard Active Tests
- Reset Service lamp
- Reset TPS
- Change the trimmer (for ECU without lambda Sensor)
- displays status (side stand, Run/Stop)
ScanM5X is a diagnostic and tuning tool, they should not be used during the trip.
Need:
Fiat 3pin Alfa Lancia to 16 Pin Diagnostic Cable obd2
and
ELM327 OBDII V1.4 Bluetooth Diagnostic Interface OBD2 or ELM327 VGate Bluetooth OBD-II OBD2 or ELM327 Wifi.
Caution : it doesnt work with some ELM like Super Mini V2.1.
Recommended ELM327: BlueScan II from Lonelec.com
Thank you Frank, H@ns and Paul for their help and patience.
Link Bluetooth to Innovate sensors (@TM) conceived and designed by Implusive_Duc, Senior Member of Ducati.ms
- added explicit permissions for write file access to memory (datalog, route, DTC, setting)
- added explicit permissions for GPS location (speed, route)
See my site for some help
http://christian.giupponi.free.fr/Android/SCANM5X.HTM
and
voir http://christian.giupponi.free.fr/Android/SCANM5X_HC06.HTM
REQUIRED AUTHORIZATIONS:
- Fine Location:
* to retrieve speed in Monitor and Dashboard
* this authorization is requested because the BT would allow to connect an external GPS
- Bluetooth:
* connection of ELM-BT and HC06 or ELM-BLE
- Wifi:
* connection of ELM-Wifi
- Network:
* download Help file
- prevent device from sleeping:
* for use while driving
ScanM5X 2.43 V 2.43 Update
- Android 14- Conversion of the original lambda O2 into AFR value
For display in the Dashboard, Unit of lambda = AFR, set the coefficients A=1 and B=0.
See the table on :
https://forum.arduino.cc/t/lecture-de-la-tension-dune-sonde-lambda-et-annonce/522003
Read More
ScanM5X 2.43 Features
Previous Versions More
ScanM5X Data Logger
V 2.43
APK
July 10, 2025
2.7 MB
Requires Android: Android 4.0.3+
Screen DPI: 160-320dpi
SHA1: 77a9e35d147aeae807c35821764ff3d17b2b21cf
Size: 2.7 MB
What's New:
- Android 14
- Conversion of the original lambda O2 into AFR value
For display in the Dashboard, Unit of lambda = AFR, set the coefficients A=1 and B=0.
See the table on :
https://forum.arduino.cc/t/lecture-de-la-tension-dune-sonde-lambda-et-annonce/522003
- Conversion of the original lambda O2 into AFR value
For display in the Dashboard, Unit of lambda = AFR, set the coefficients A=1 and B=0.
See the table on :
https://forum.arduino.cc/t/lecture-de-la-tension-dune-sonde-lambda-et-annonce/522003
ScanM5X Data Logger
V 2.42
APK
January 6, 2023
2.69 MB
Requires Android: Android 4.0.3+
Screen DPI: 160-320dpi
SHA1: 1c3d8a2ced59346fca7e3bceb715c8e2bd596356
Size: 2.69 MB
What's New:
Android 13 compatibility (I hope), new rules.
- GPS management (for speed)
- Bluetooth management
- Parameter and datalog storage management: files can no longer be copied but you can send them by Mail to the address of your choice. I added a "File Management" menu to send or delete files.
However, all files are deleted when uninstalling.
- GPS management (for speed)
- Bluetooth management
- Parameter and datalog storage management: files can no longer be copied but you can send them by Mail to the address of your choice. I added a "File Management" menu to send or delete files.
However, all files are deleted when uninstalling.
ScanM5X Data Logger
V 2.41
APK
December 31, 2022
2.68 MB
Requires Android: Android 4.0.3+
Screen DPI: 160-320dpi
SHA1: 7b8d465b65ee1643ca621815d56c78102cb26c9a
Size: 2.68 MB
What's New:
I'm sorry for the inconvenience caused by the previous version 1.40. This should be Android 13 SDK31 compatible (unless I'm mistaken). But it is a limited and provisional version.
Given the new rules concerning the storage of files since version A11, the recordings are no longer visible by the file manager to be transferred to PC. In the next version, I will propose a solution to transfer them.
The settings files are deleted when uninstalling.
Given the new rules concerning the storage of files since version A11, the recordings are no longer visible by the file manager to be transferred to PC. In the next version, I will propose a solution to transfer them.
The settings files are deleted when uninstalling.
ScanM5X Data Logger
V 1.40
APK
December 25, 2022
2.68 MB
Requires Android: Android 4.0.3+
Screen DPI: 160-320dpi
SHA1: fbb2cad4a4934a1675d4eb91109022ddb75f8296
Size: 2.68 MB
What's New:
ELM327 management
Full compatibility with BlueSCAN II from Lonelec
Full compatibility with BlueSCAN II from Lonelec
