OBD2 ELM327 Bluetooth Guide

OBD2 LM327 Bluetooth Guide (Package Name: com.khaled1989.obd2lm327guide2022) is developed by khaled harasheh and the latest version of OBD2 ELM327 Bluetooth Guide 1 was updated on September 30, 2022. OBD2 ELM327 Bluetooth Guide is in the category of Personalization. You can check all apps from the developer of OBD2 ELM327 Bluetooth Guide. Currently this app is for free. This app can be downloaded on Android 5.0+ on APKFab or Google Play. All APK/XAPK files on APKFab.com are original and 100% safe with fast download.

Welcome to the OBDII LM327 Bluetooth guide App
The ELM327 is a programmed microcontroller produced for translating the on
board diagnostics (OBD) interface found in most modern cars. The ELM327 command protocol is one of the most popular PC-to-OBD interface standards and is also implemented by other vendors.
The original ELM327 was implemented on the PIC18F2480 microcontroller from Microchip Technology.
While in business, ELM Electronics also sold other variants of the product, with slightly different part numbers, which implemented only a subset of the OBD protocols.

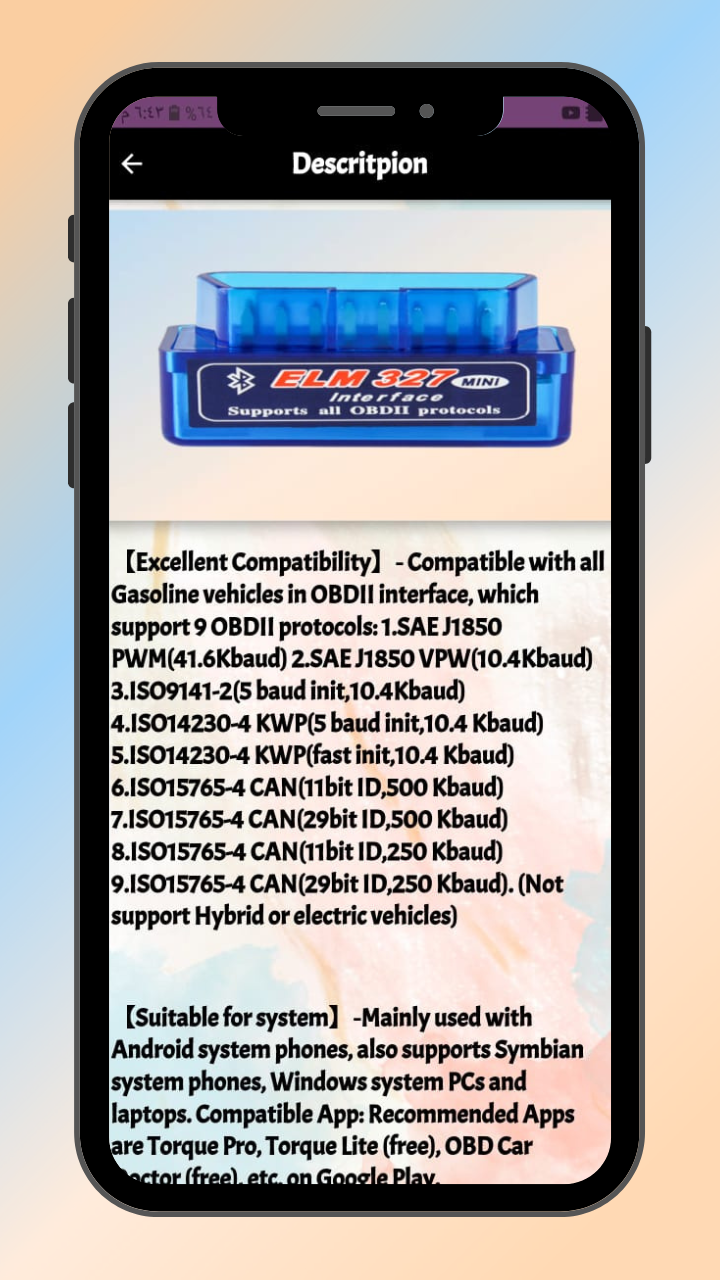

【Excellent Compatibility】- Compatible with all Gasoline vehicles in OBDII interface, which support 9 OBDII protocols: 1.SAE J1850 PWM(41.6Kbaud) 2.SAE J1850 VPW(10.4Kbaud) 3.ISO9141-2(5 baud init,10.4Kbaud) 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 5.ISO14230-4 KWP(fast init,10.4 Kbaud) 6.ISO15765-4 CAN(11bit ID,500 Kbaud) 7.ISO15765-4 CAN(29bit ID,500 Kbaud) 8.ISO15765-4 CAN(11bit ID,250 Kbaud) 9.ISO15765-4 CAN(29bit ID,250 Kbaud). (Not support Hybrid or electric vehicles)
【Suitable for system】-Mainly used with Android system phones, also supports Symbian system phones, Windows system PCs and laptops. Compatible App: Recommended Apps are Torque Pro, Torque Lite (free), OBD Car Doctor (free), etc. on Google Play.
【Smart Scanning】 Read diagnostic trouble codes, nonspecific and manufacturer-specific, and display their meaning (over 3000 code definitions in the database).
【Easy to Use】-Plug this OBD2 scan tool in your car's OBD2 port, turn on your car, enable Bluetooth on your Android phone or tablet, search for "OBDII" and pair with it (pin 1234), run the download App with simple settings and wait until it connects your car's ECU successfully
Save time and money by finding out why the check engine light is on and fixing simple car problems by yourself! Read and clear check engine trouble codes, Check Engine Light using your phone or tablet and an OBD2 App.
Function:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure

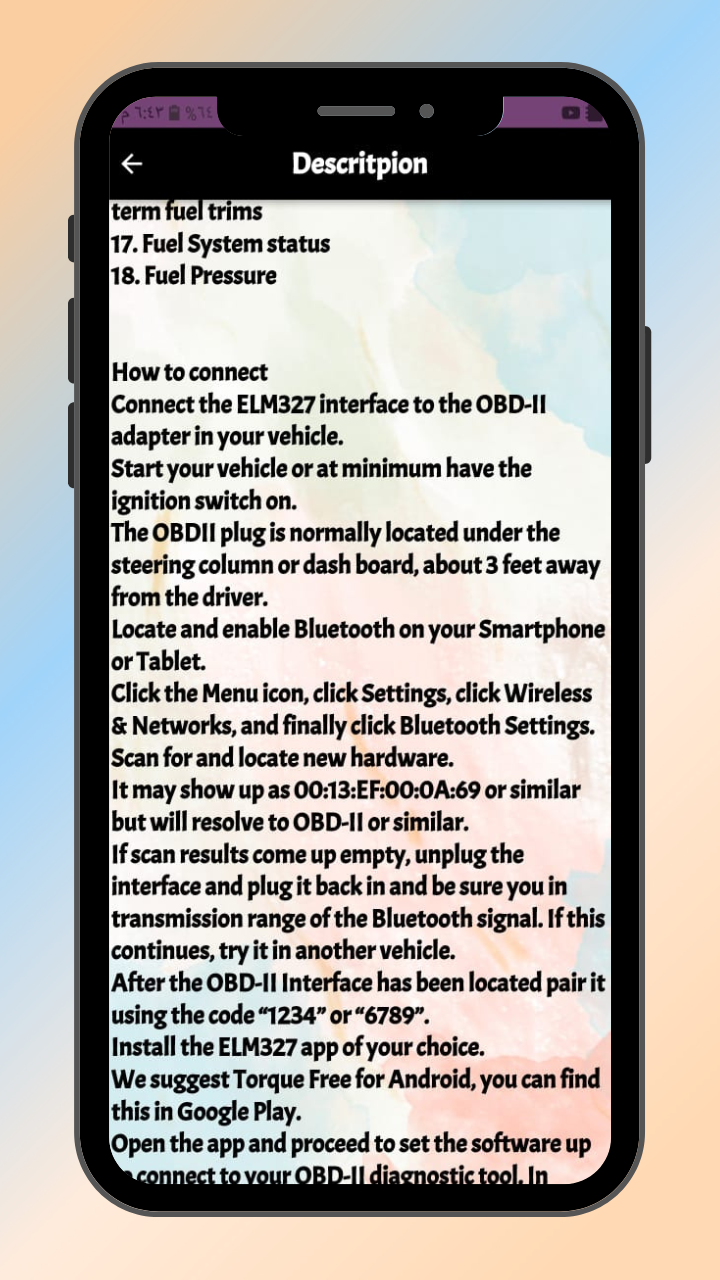

How to connect
Connect the ELM327 interface to the OBD-II adapter in your vehicle.
Start your vehicle or at minimum have the ignition switch on.
The OBDII plug is normally located under the steering column or dash board, about 3 feet away from the driver.
Locate and enable Bluetooth on your Smartphone or Tablet.
Click the Menu icon, click Settings, click Wireless & Networks, and finally click Bluetooth Settings.
Scan for and locate new hardware.
It may show up as 00:13:EF:00:0A:69 or similar but will resolve to OBD-II or similar.
If scan results come up empty, unplug the interface and plug it back in and be sure you in transmission range of the Bluetooth signal. If this continues, try it in another vehicle.
After the OBD-II Interface has been located pair it using the code “1234” or “6789”.
Install the ELM327 app of your choice.
We suggest Torque Free for Android, you can find this in Google Play.
Open the app and proceed to set the software up to connect to your OBD-II diagnostic tool. In Torque you will need to select the Bluetooth Device from the preferences menu.
Go Online with your vehicle to begin collecting real-time data and trouble codes from the ECU. The process for each software package will be different but is generally self-explanatory.

OBD2 LM327 Bluetooth Guide 1 Update

ELM 327 Bluetooth guide
