Roof Appの詳細

RedXAppsからリリースされた『Roof App』はツールアプリだ。apkfab.com/jpから『Roof App』のファイルサイズ(APKサイズ):48.3 MB、スクリーンショット、詳細情報などを確認できる。apkfab.com/jpではRedXAppsより配信したアプリを簡単に検索して見つけることができる。『Roof App』に似ているアプリや類似アプリは214個を見つける。現在、RedX Roof - Rafter Calculator, Valleys & trusses appのダウンロードも基本プレイも無料だ。『Roof App』のAndroid要件はAndroid 4.1+なので、ご注意ください。APKFabあるいはGooglePlayから『RedX Roof - Rafter Calculator, Valleys & trusses apk』の最新バージョンを高速、安全にダウンロードできる。APKFab.com/jpでは全てのAPK/XAPKファイルがオリジナルなものなので、高速、安全にダウンロードできる。
RedX Roof App has a Rafter Calculator, Truss Builder, Plywood Angles, Valley Builder, Hip Rafters, Turret Roof & Dormer Builder Free. You will save countless hours of work the first time you use it.
This app was designed to be Fast and Easy to get measurements on the job.

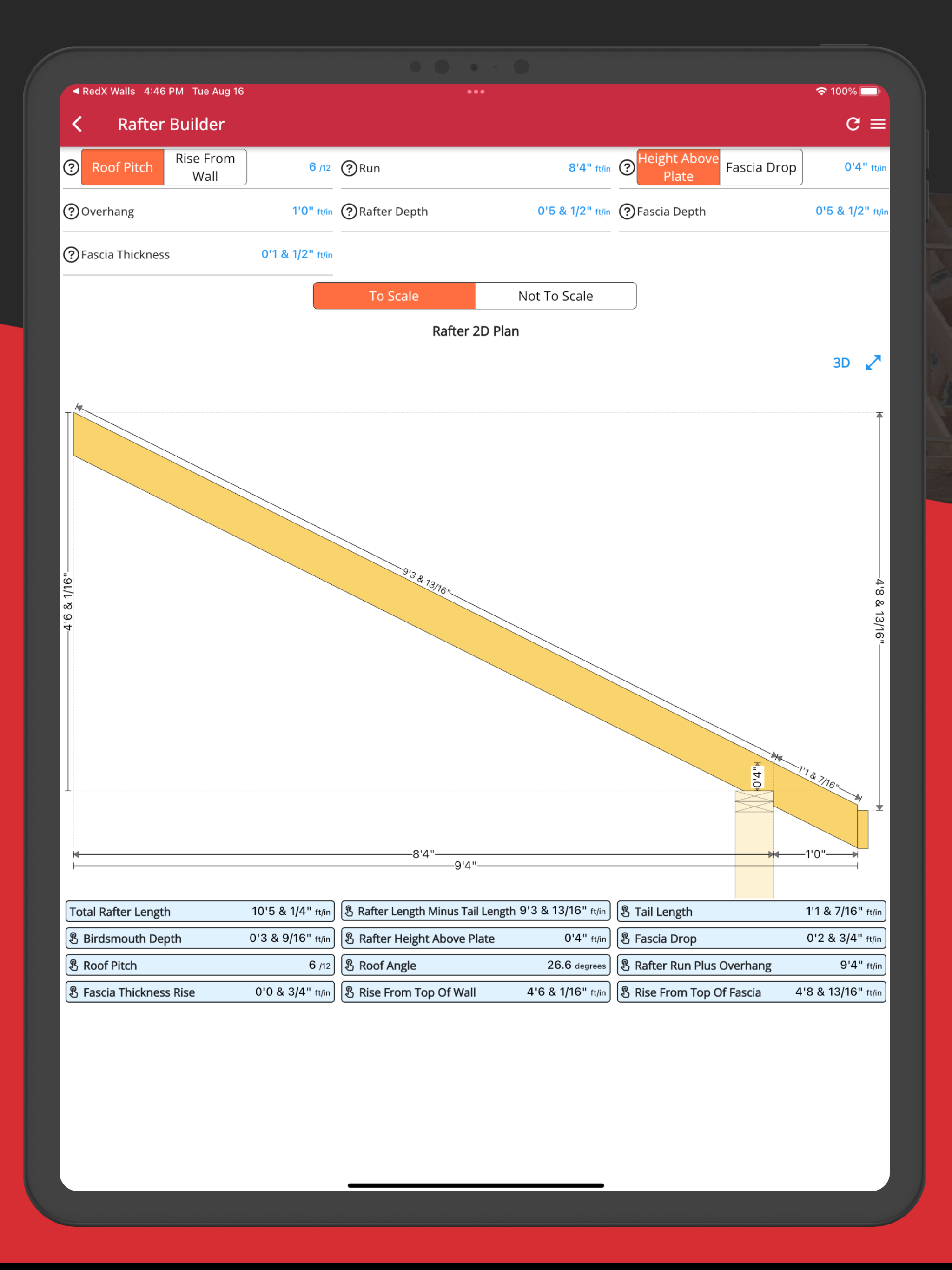

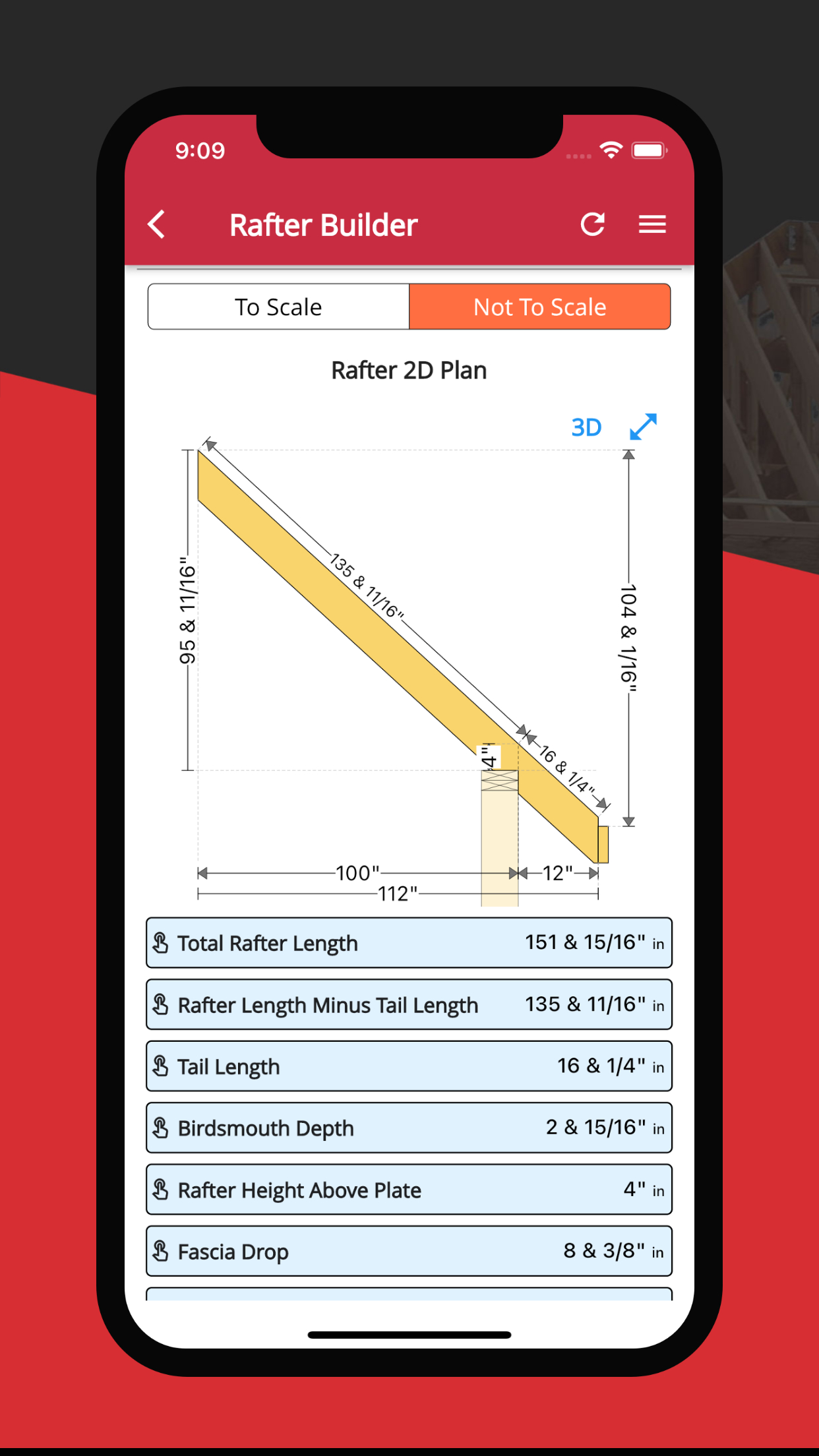

Common Rafter Builder
Using Common Rafter Builder is quick and easy, just enter the
- Roof pitch or rise
- Run length
- Overhang length
Then the app will automatically generate a to scale view of what the Rafter will look like, along with all of the measurements.
Measurements that the app generates.
- Total rafter length
- Rise from top of wall
- Rise from top of Facia
- Rafter tail length
- Birds-mouth measurements
You can control how high or how low you want your facia to be in comparison to the top of your wall and you can also edit the rafter depth.

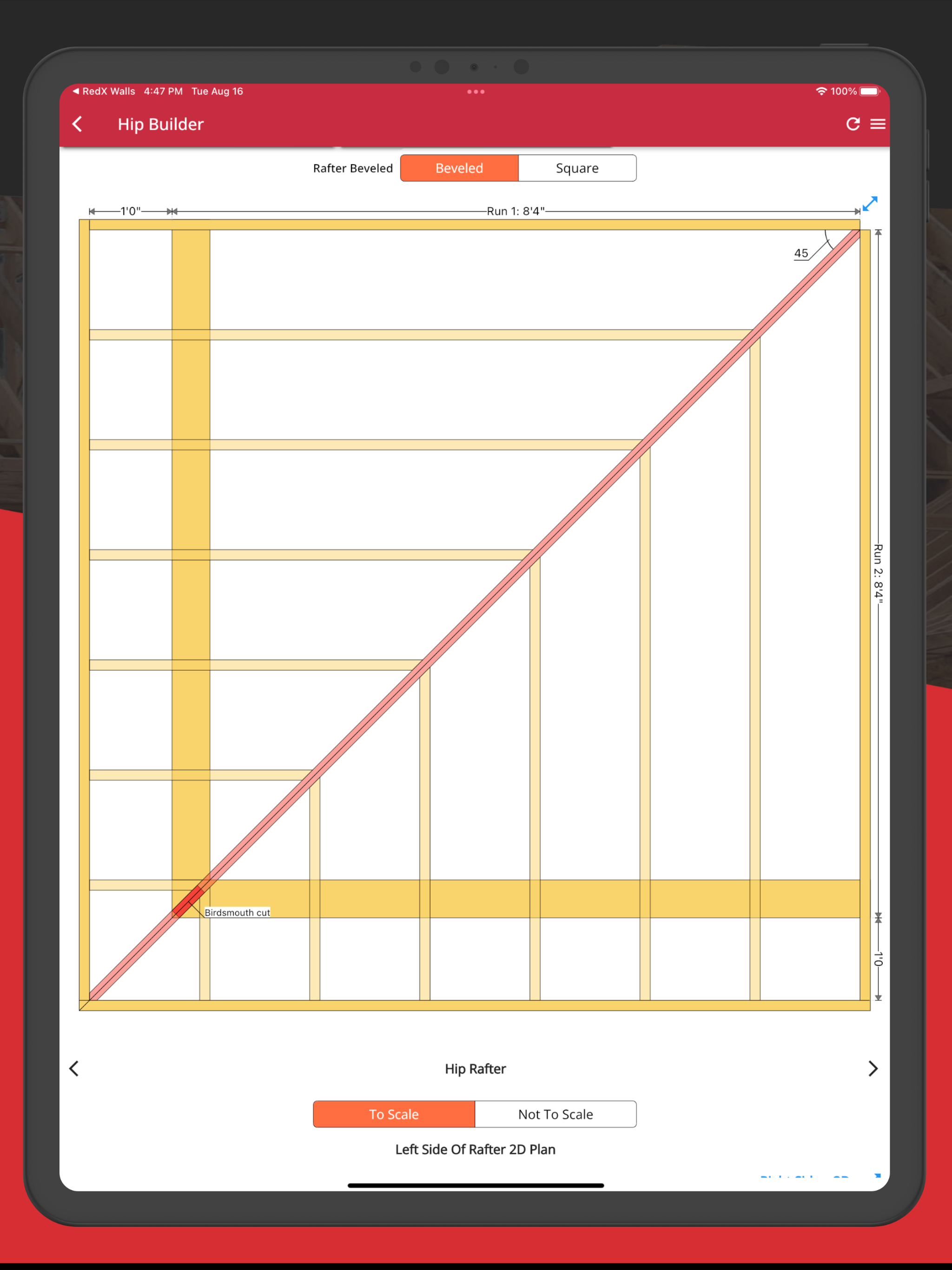

HIP RAFTER BUILDER
Quick and Easy
Simply enter the Roof Pitch and the Run (bottom length of the common rafter), and the app will generate an image of what the Hip Rafter will look like, all of the measurements.
Measurements that the app generates.
- Hip rafter length
- Hip backing angles
- Every jack rafter length
- Jack rafter bevel angles
- All other angles
Along with every detail for every rafter, like birds mouth depth, tail length and others. This also supports different roof pitches.
So you save time and pre-cut every piece for your corner hip rafters.
PLYWOOD ANGLES
Plywood Angles is super simple to use. You just enter your first roof pitch (example 6/12) and then your other roof pitch.
The app will then generate a to scale image of the piece of plywood with the correct angle, along with the top, bottom and side measurements.
Save Time
No more taking out your measuring tape, snapping lines ext... you just saved several minutes of work and most importantly your plywood angle will be Perfect.
Edit Measurements
You can also edit any of the plywood measurements, for example if you edit the bottom measurement, the app will update all other measurements instantly.

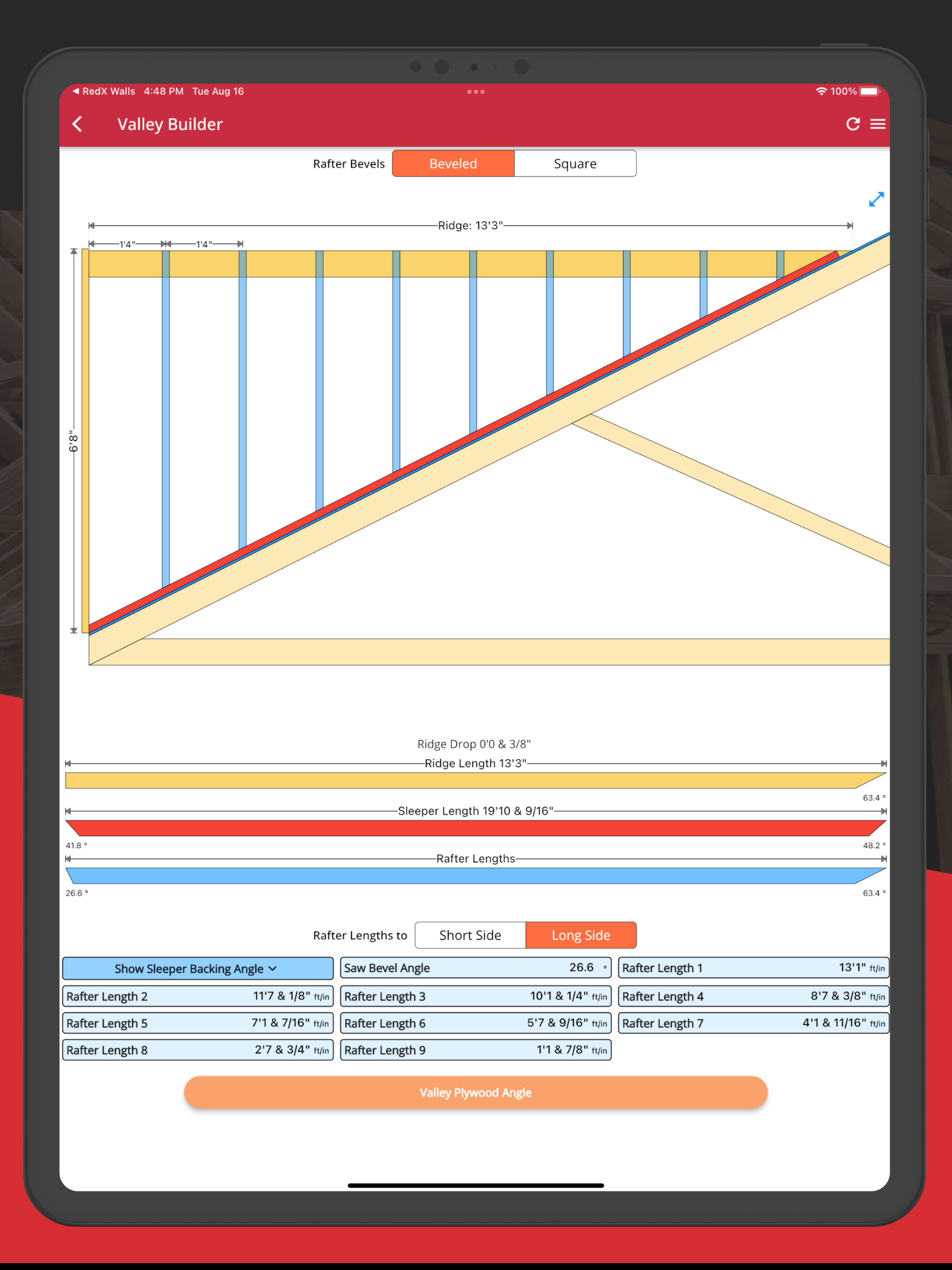

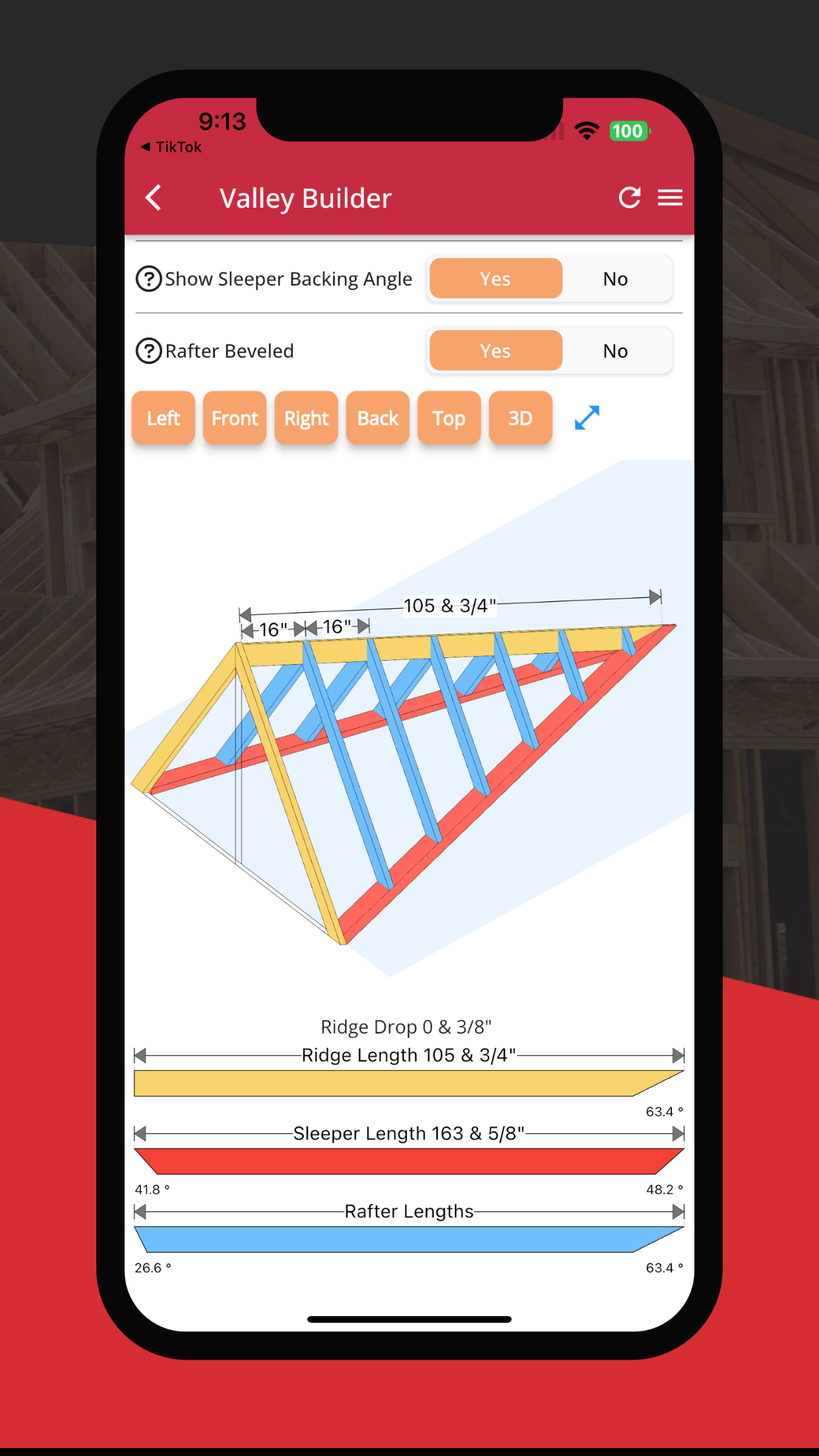

VALLEY BUILDER
This is one of our most powerful features and the one we use the most.
How it works
- Enter first and second roof pitch
- Rafter spacing (example 16" centre)
- First truss height (detailed explanations inside the app).
With these 4 values entered the app will generate.
1- A 2d example, to scale of what the Valley will look like.
2- Gets the ridge length with the exact angles.
3- Gets the sleeper board length (colour red) with both angles.
4- Gives you a list of every single rafter lengths (colour blue) with both angles and bevels.
5- Gets the saw bevel angles if you want to bevel your sleeper.
Just like that you have every single measurement in seconds, with the exact angles. Every piece you need to build your valley.
Save Time
This way, if you wanted you could pre-cut all of your pieces.

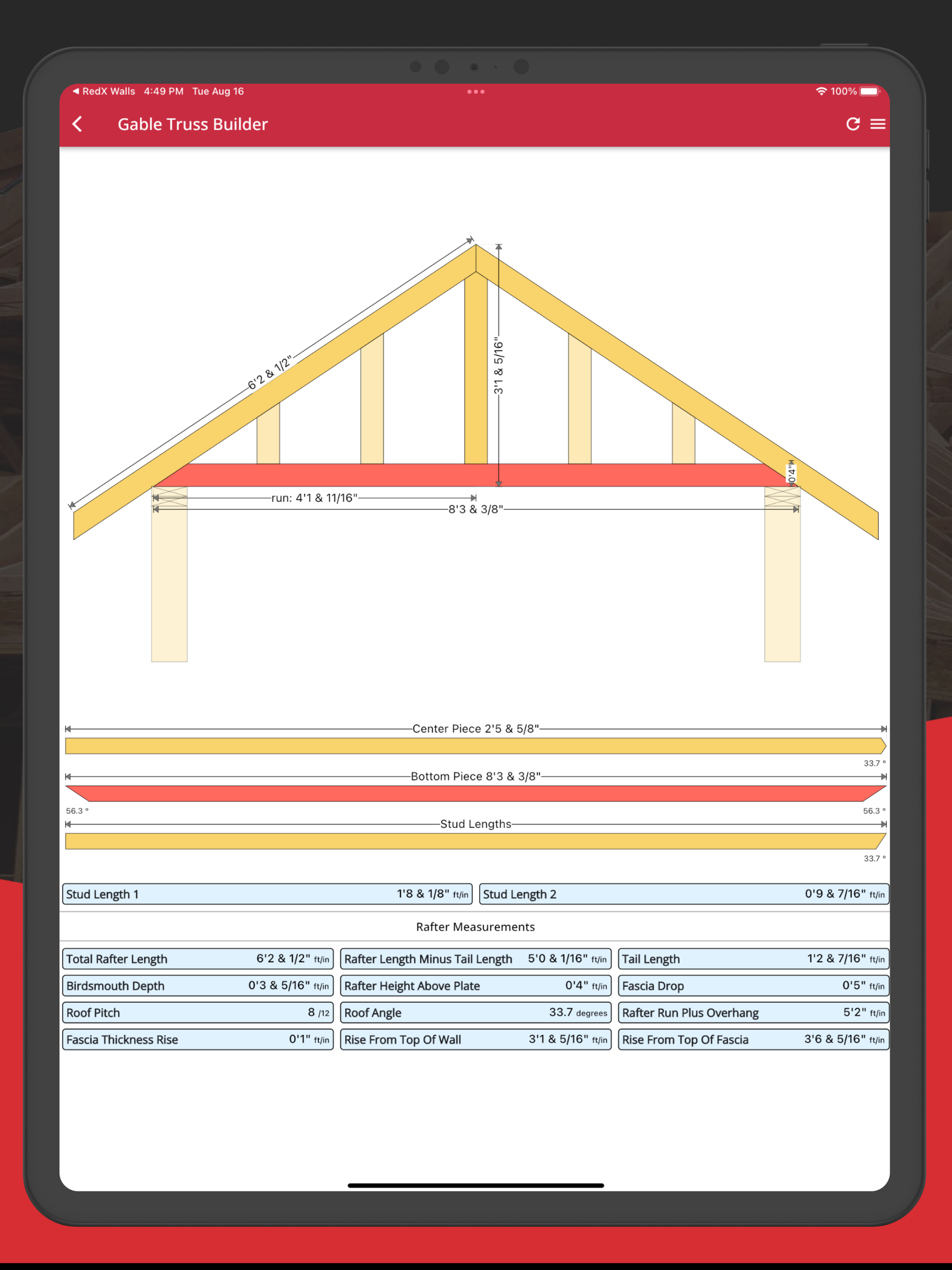

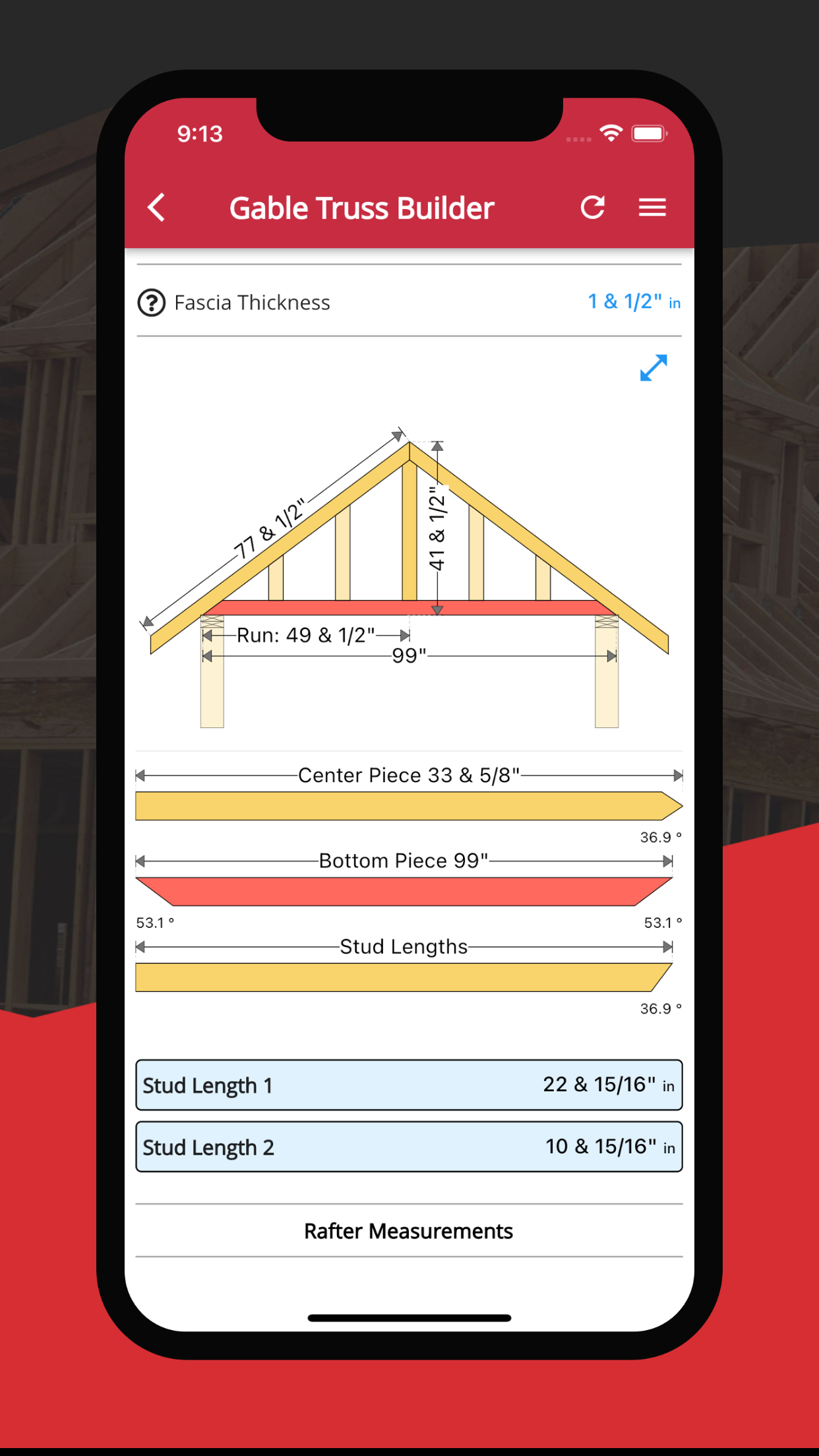

GABLE TRUSS BUILDER
Easy to use
Simply enter the total length of the truss, roof pitch, stud spacing.
The app will then generate a to scale view of the truss with all of the measurements.
Other features
- Turret Roof Builder
- Dormer Builder
We are always adding new features every couple of weeks, view our new features inside the app.
Terms Of Use
https://www.redxroof.com/terms-of-use

Roof App 4.4 アップデート

We are continuously updating the app and adding new features.

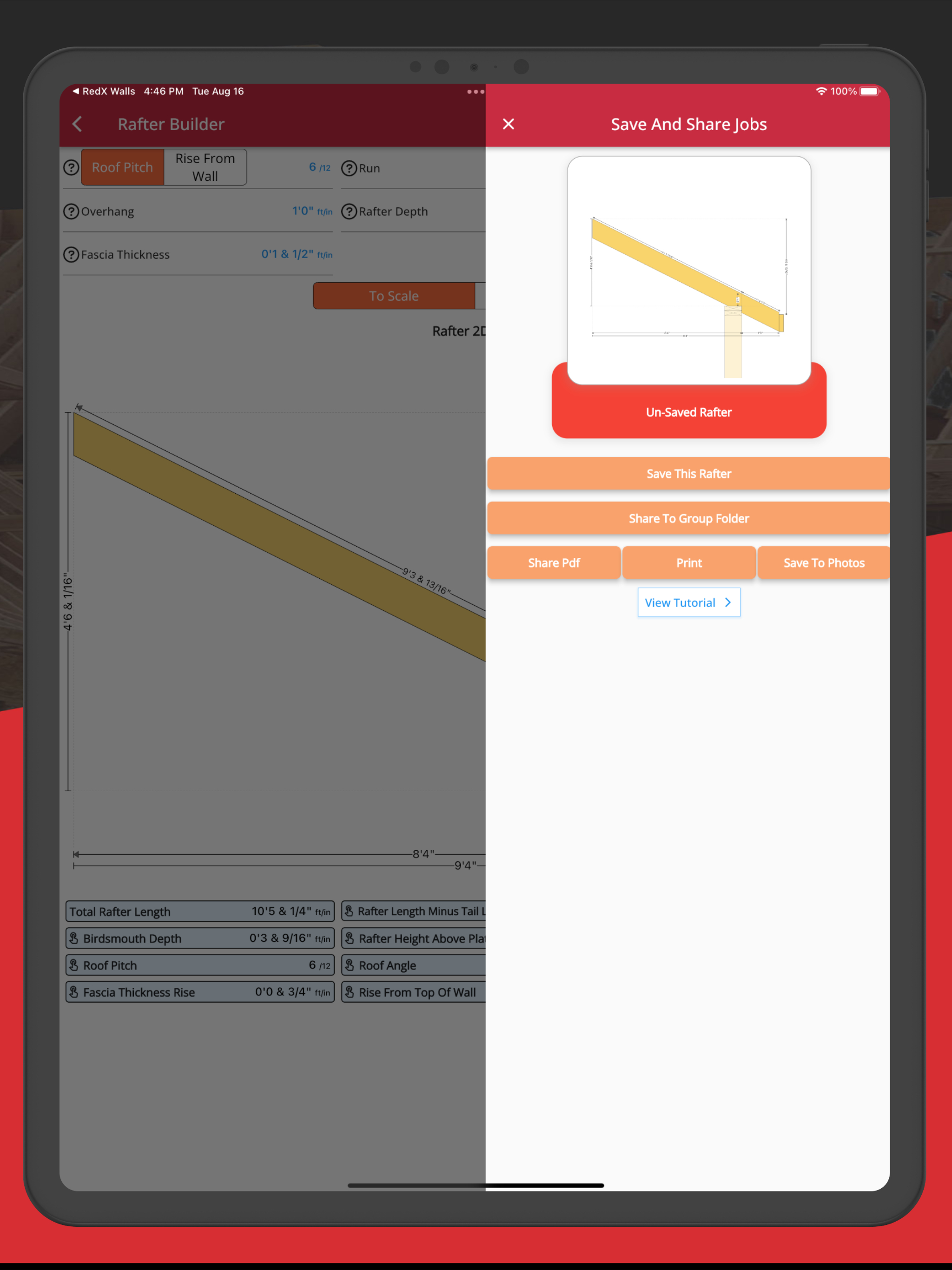

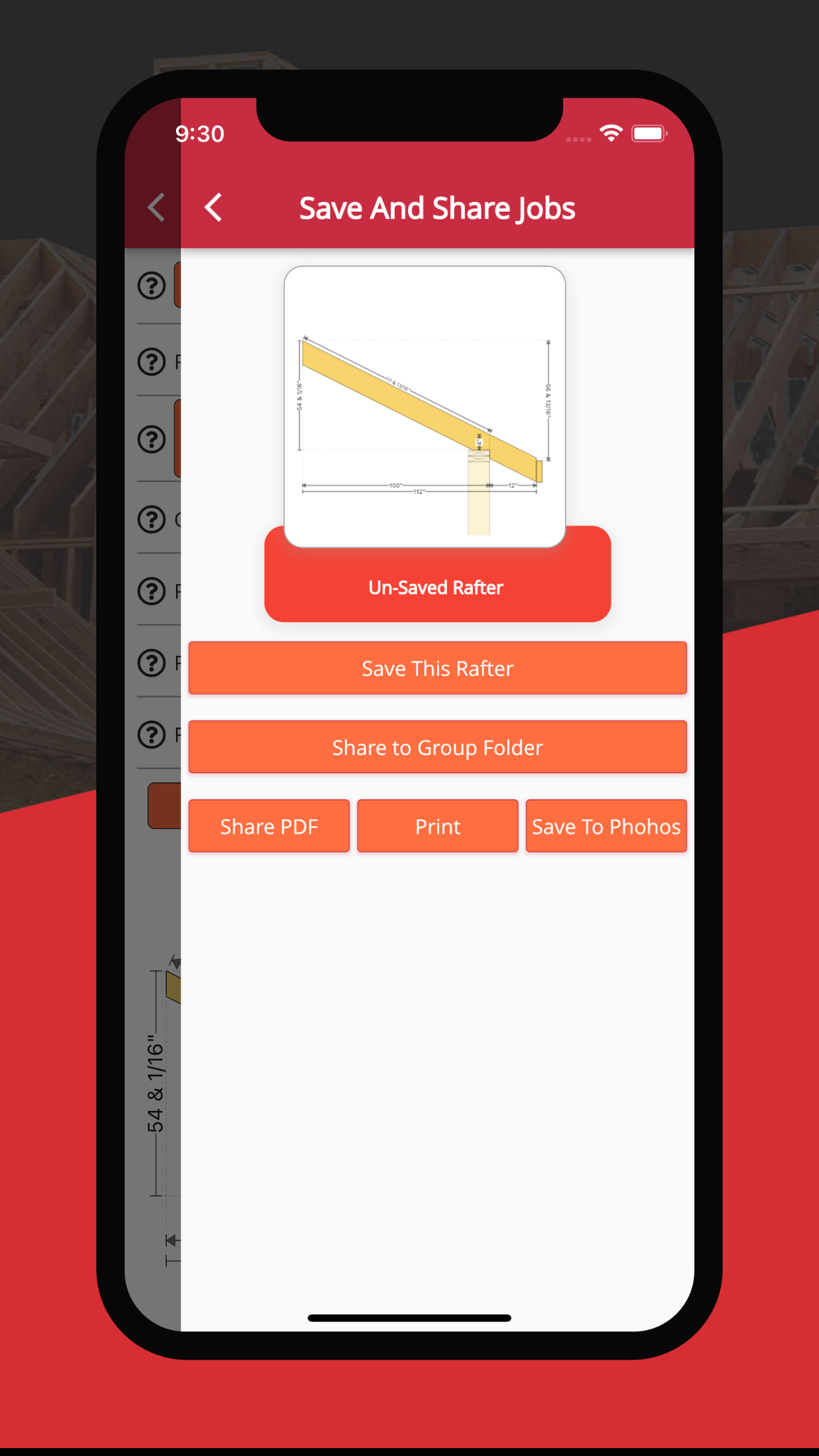

This update adds the ability to Print and Share any job. Also adds other minor improvements
続きを読む
Roof App 特徴
バージョン履歴 もっと見る
RedX Roof - Rafter Calculator, Valleys & trusses
RedX Roof - Rafter Calculator, Valleys & trusses 4.3 APK
2021-04-13 37.38 MB

Requires Android: Android 4.1+

Architecture: armeabi-v7a

Screen DPI: 160-640dpi

SHA1: d39d7403d6eb8b2fe1e5114de9d01d8c0f67571d

Size: 37.38 MB

What's New:

We are continuously updating the app and adding new features.
Minor improvements and bug fixes
RedX Roof - Rafter Calculator, Valleys & trusses
RedX Roof - Rafter Calculator, Valleys & trusses 3.9 APK
2021-03-16 41.84 MB

Requires Android: Android 4.1+

Architecture: armeabi-v7a

Screen DPI: 160-640dpi

SHA1: cba9bdd347465bbb966664d3126d5776ec7171e4

Size: 41.84 MB

What's New:

We are continuously updating the app and adding new features.
Minor improvements and bug fixes
RedX Roof - Rafter Calculator, Valleys & trusses
RedX Roof - Rafter Calculator, Valleys & trusses 3.8 APK
2021-03-14 41.84 MB

Requires Android: Android 4.1+

Architecture: armeabi-v7a

Screen DPI: 160-640dpi

SHA1: b4ba7481179fd929dd2ffa94dcb048d9995e80be

Size: 41.84 MB

What's New:

We are continuously updating the app and adding new features.
Minor improvements and bug fixes
RedX Roof - Rafter Calculator, Valleys & trusses
RedX Roof - Rafter Calculator, Valleys & trusses 3.0 APK
2020-12-11 16.17 MB

Requires Android: Android 4.1+

Architecture: armeabi-v7a

Screen DPI: 160-640dpi

SHA1: 6c56df9eef66f24a893f028ee620c03fd1f4d38f

Size: 16.17 MB

What's New:

We are continuously updating the app and adding new features.
You can now choose between using roof pitch or roof angles.
Example roof pitch - 6/12 roof pitch
Example degrees - 26.6 degrees
