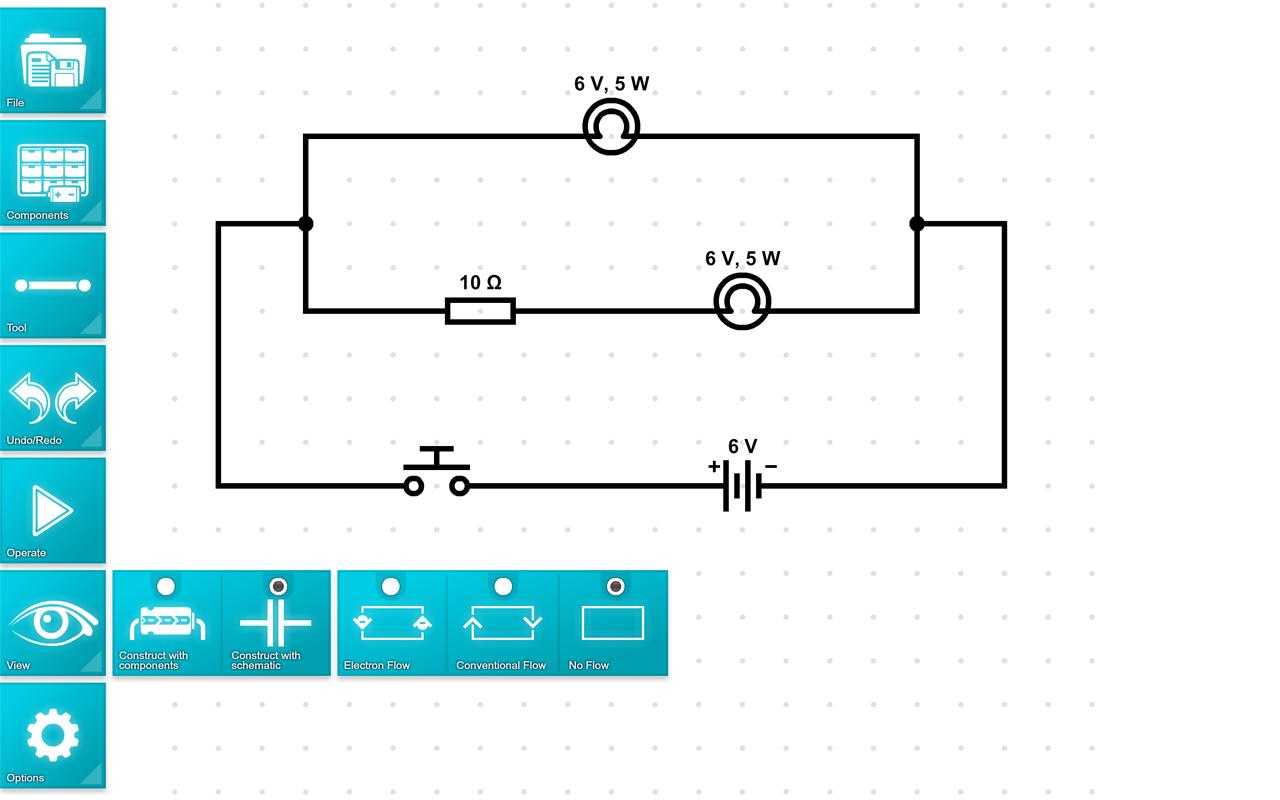

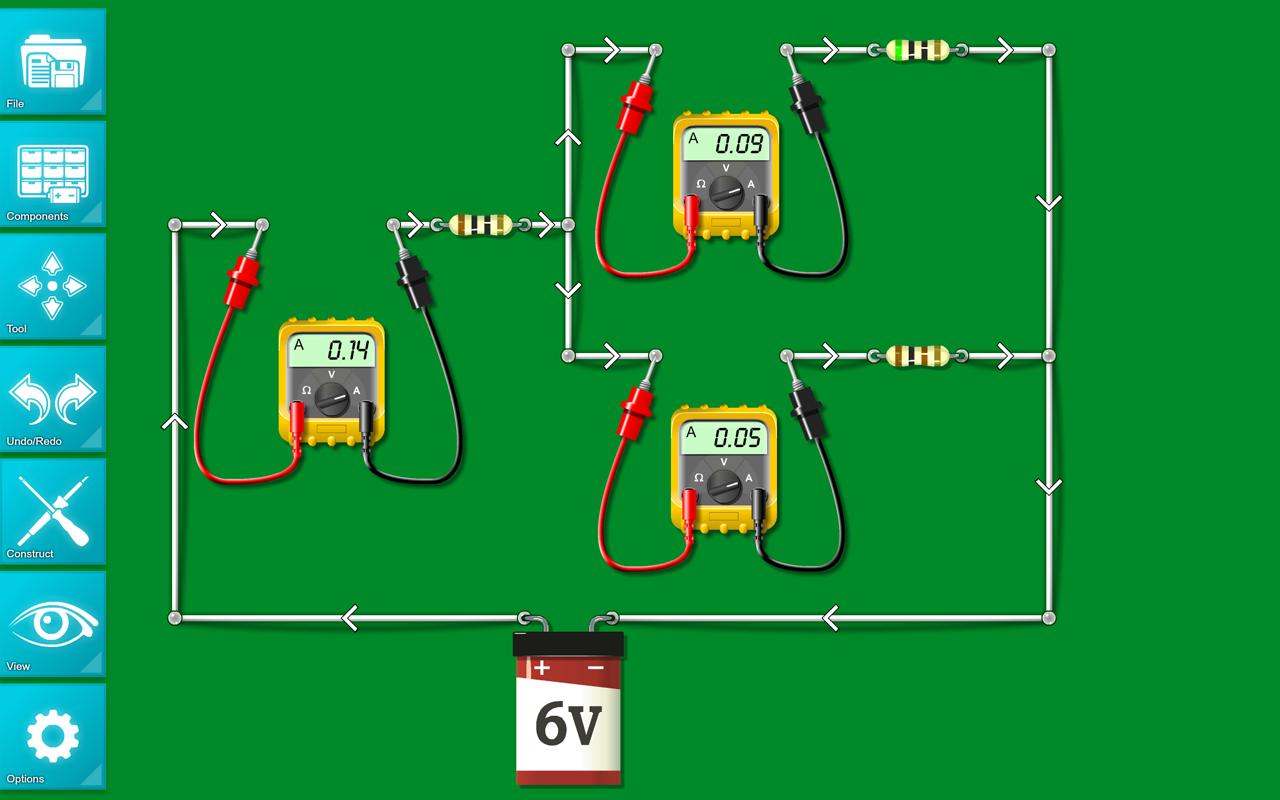

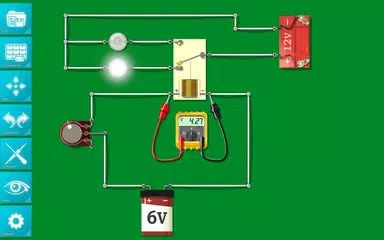

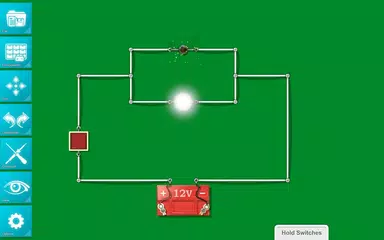

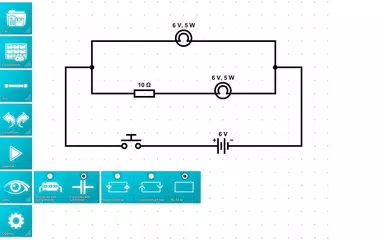

Circuit Builder is designed to be an introduction to constructing and operating electronic circuits. Intuitive controls and layout make Circuit Builder the perfect App for understanding the basics of electrical and electronic circuits. Circuit Builder has been optimised for use on tablets, but also works well on large screen smart phones. Build your own virtual circuits using any combination of electrical components. The easy to use library of components includes batteries, switches, lamps, resistors (fixed and variable), capacitors, fuses, circuit breakers, buzzers, heaters and motors. Connect components using virtual wires to make a circuit. Put the App into operate mode to see it work. You can even use virtual multimeters to measure voltage, current and resistance. Circuits can be viewed and built in either component or schematic view. The component library contains the following items: Batteries* 1.5V, 6V, 9V and 12V Switches Push-to-make, Push-to-break, On-Off, 2-position single-pole, 3-position single-pole, 3-position double-pole, Thermal and Relay Lamps 6V (5W) clear, 12V (10W) clear, 12V (20W) clear, 12V (20W) red, 12V (20W) yellow and 12V (20W) blue Resistors 10Ω (5W), 50Ω (5W), 100Ω (5W), 500Ω (5W), 1kΩ (5W), 5kΩ (5W) and 10kΩ (5W) Variable Resistors 10Ω, 25Ω, 50Ω, 100Ω, 1kΩ and 10kΩ Capacitors* 500μF, 1mF, 5mF, 50mF, 100mF, 500mF and 1F Fuses 0.5A, 1A, 1.5A, 2A, 3A, 4A, 5A, 7.5A and 10A Circuit Breakers 0.5A, 1A, 5A and 10A Miscellaneous 6V Buzzer, 24V Heater (200W) and a 12V Motor (15W) *Maximum of four batteries and one capacitor per construction.
